Answers for exercises for part 4

Here we take questions 1a-1h and give the answers bit by bit. Do not worry about the code here!!

First of all the Eigenvalues and Eigenvectors:

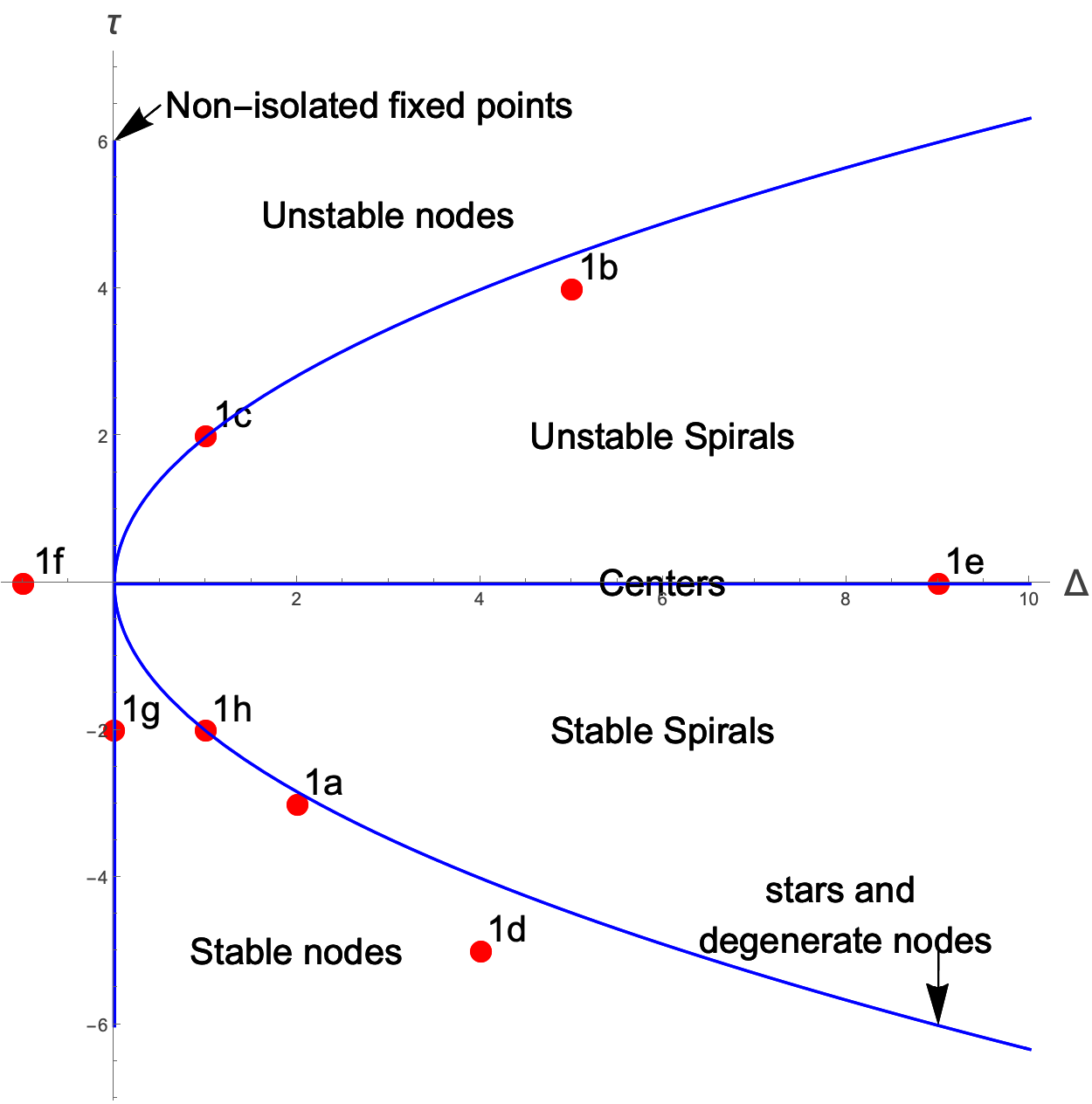

Next we show where each of them appears on the classification picture:

Figure 1

And finally we give the phase portraits for each of them:

These are just some functions defined to help draw the arrows and set the boundary conditions.

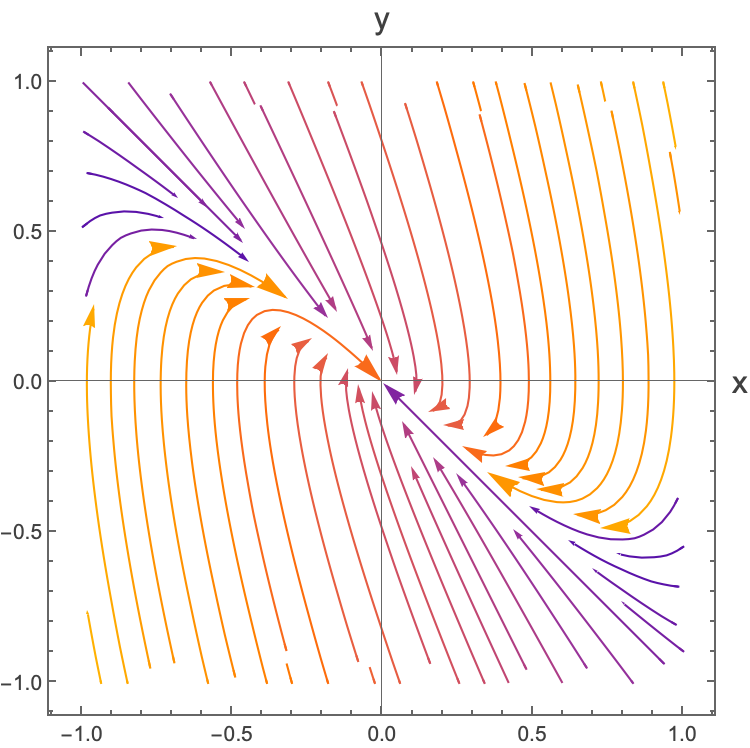

1a:

Figure 2

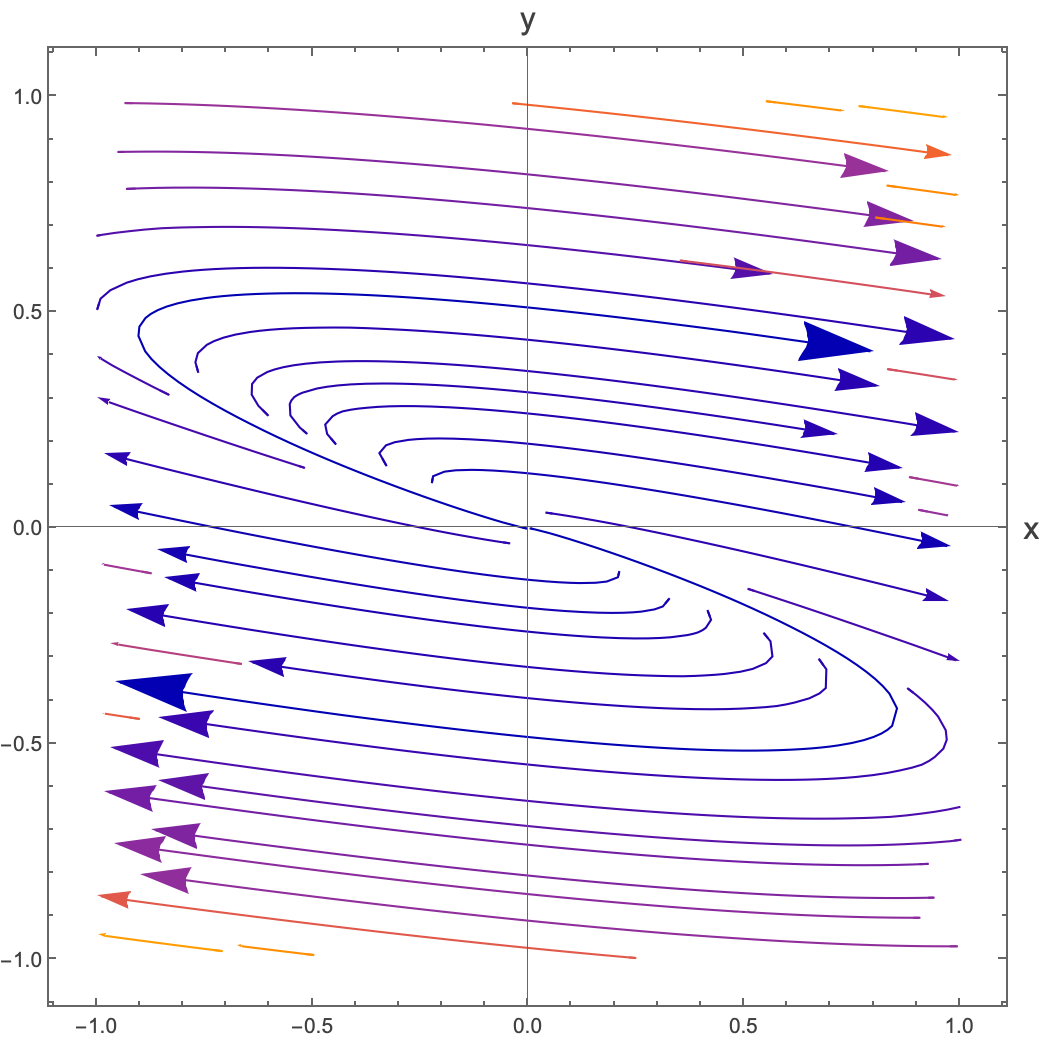

1b:

Figure 3

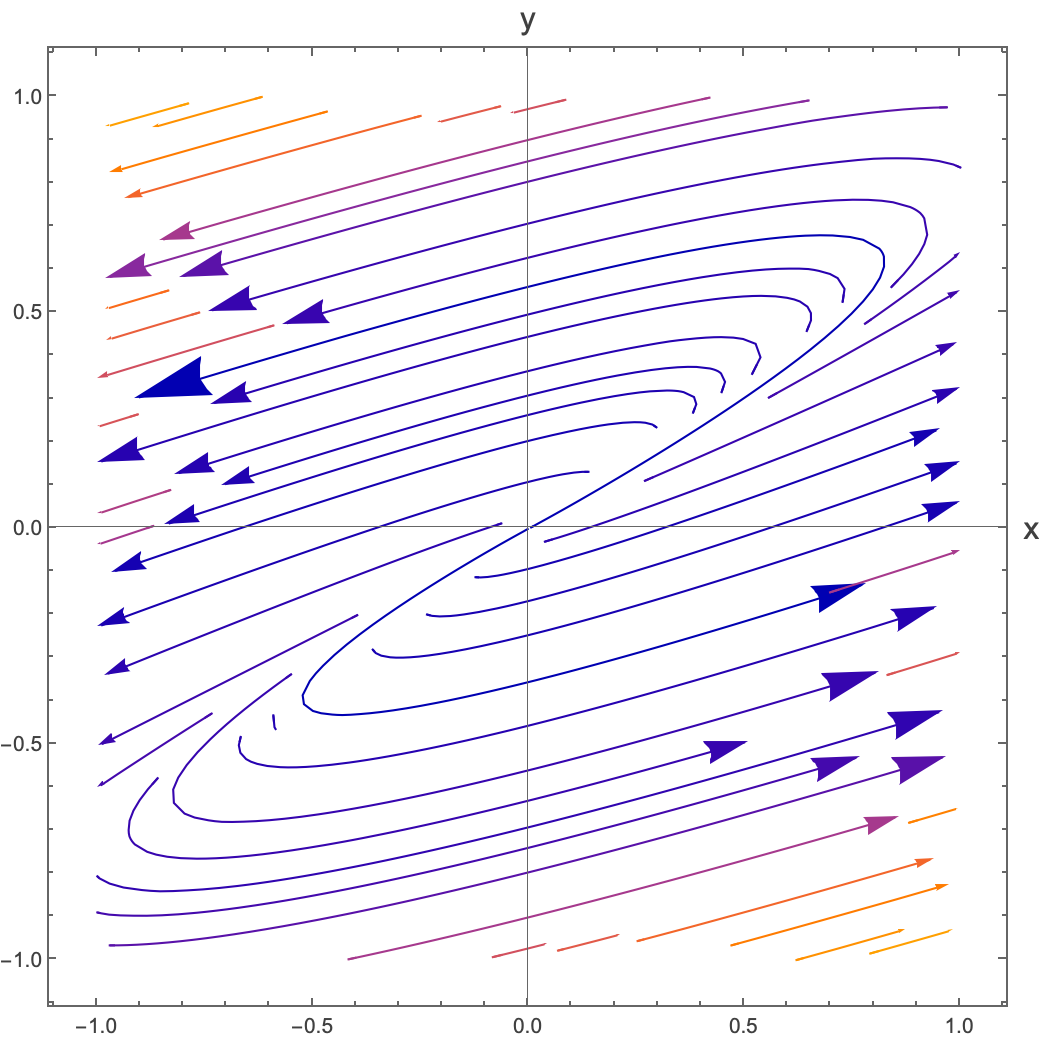

1c:

Figure 4

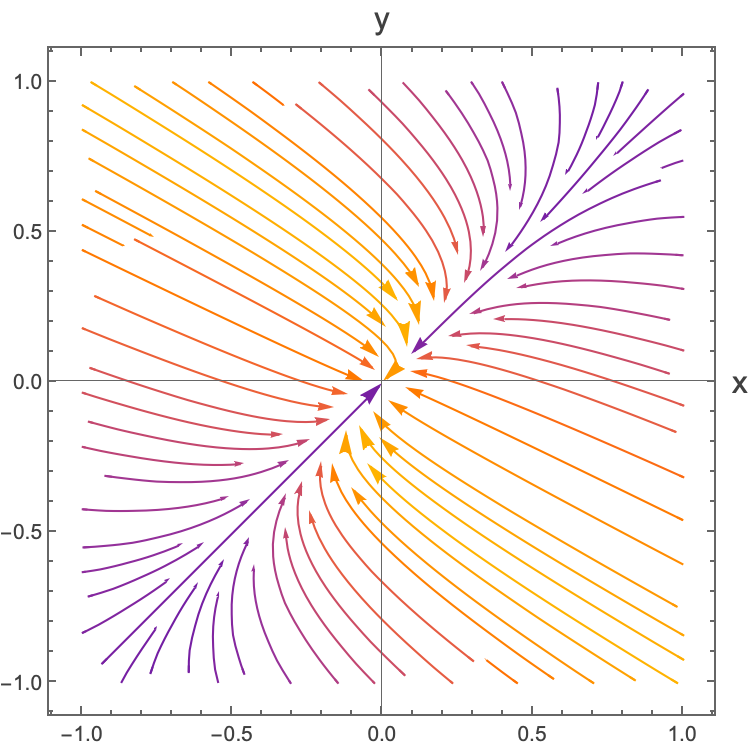

1d:

Figure 5

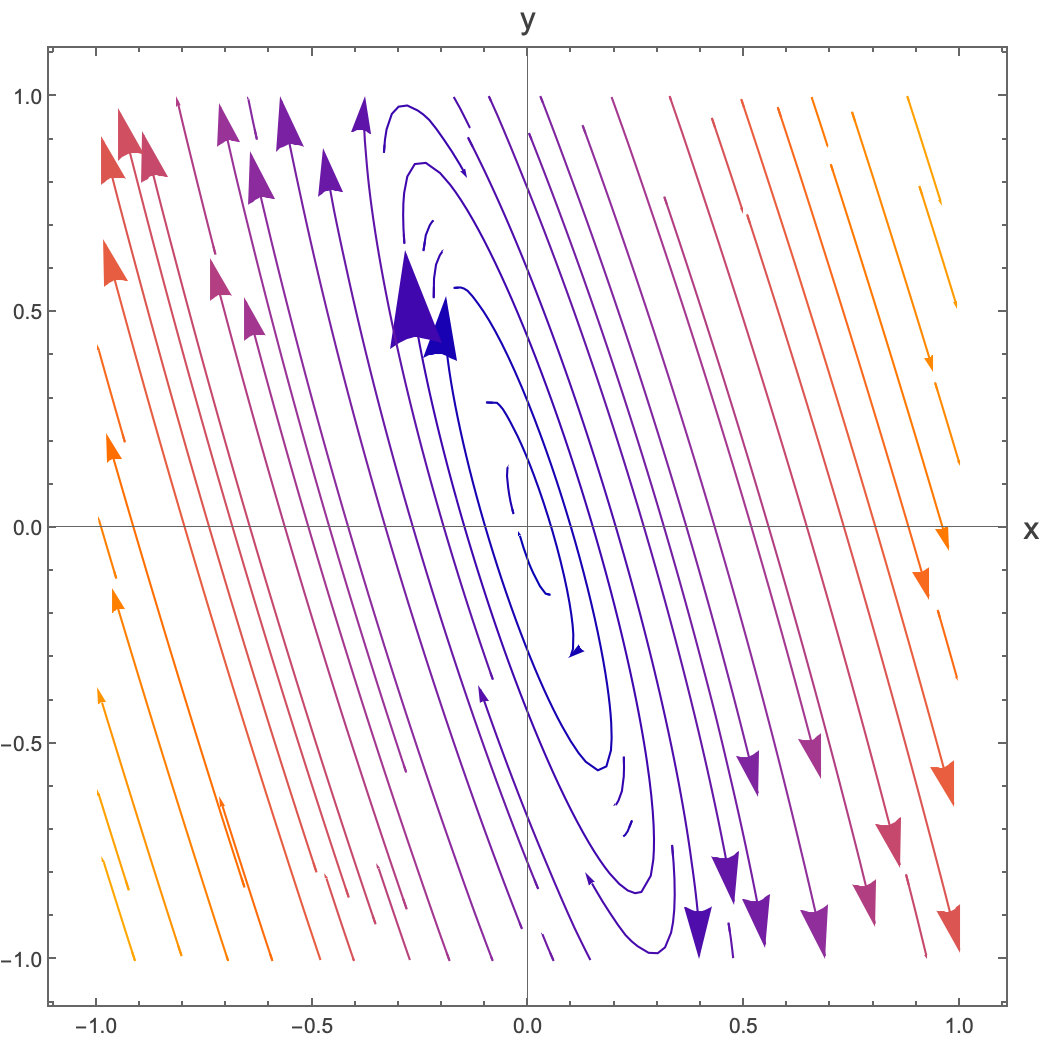

1e:

Figure 6

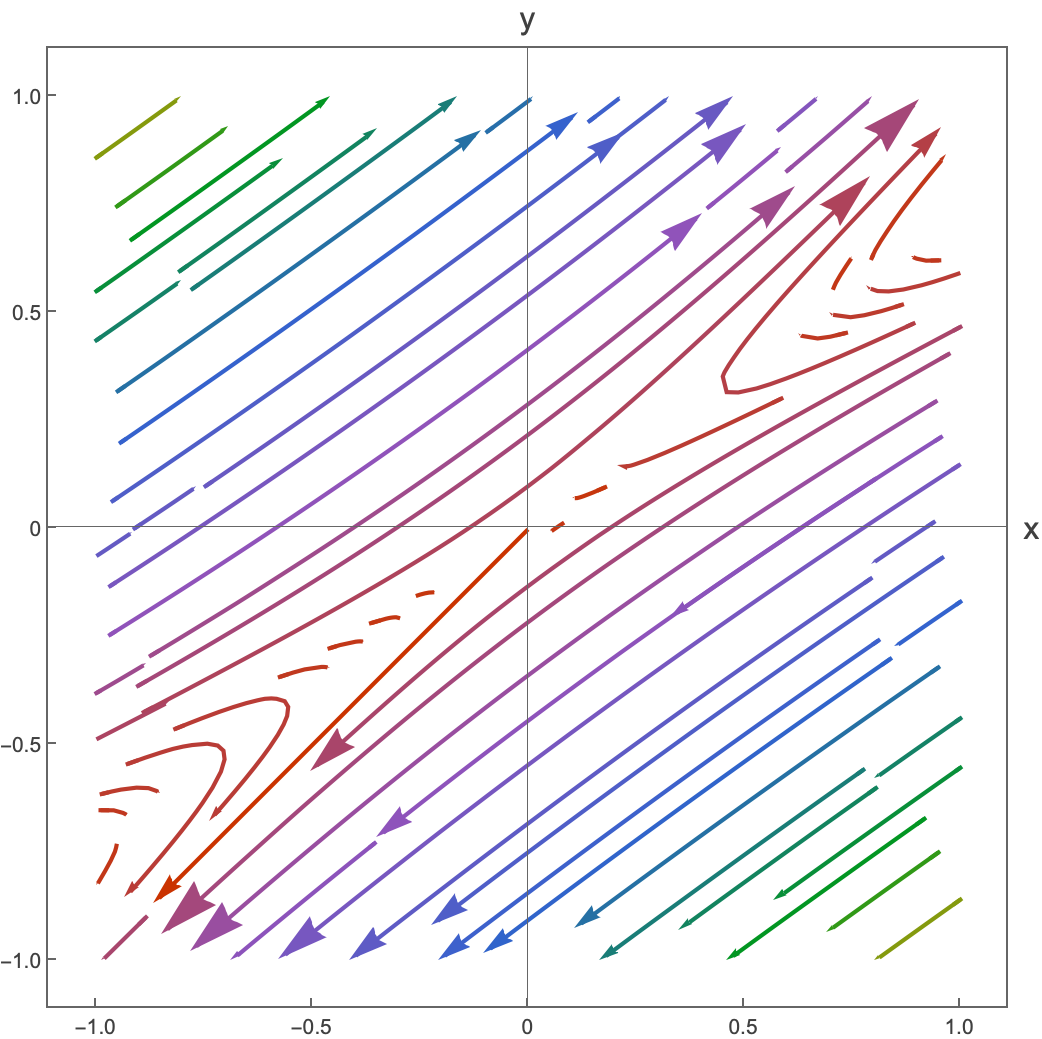

1f:

Figure 7

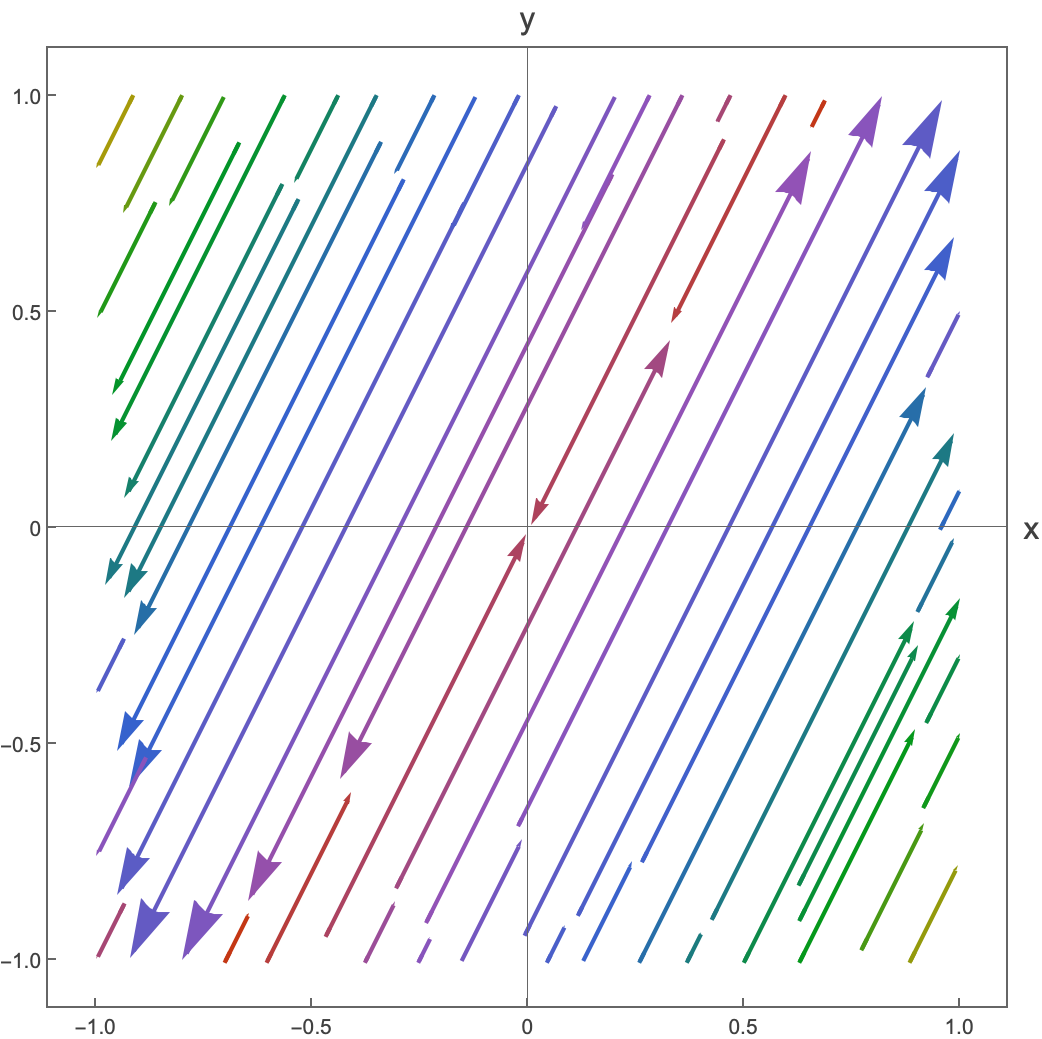

1g:

Figure 8

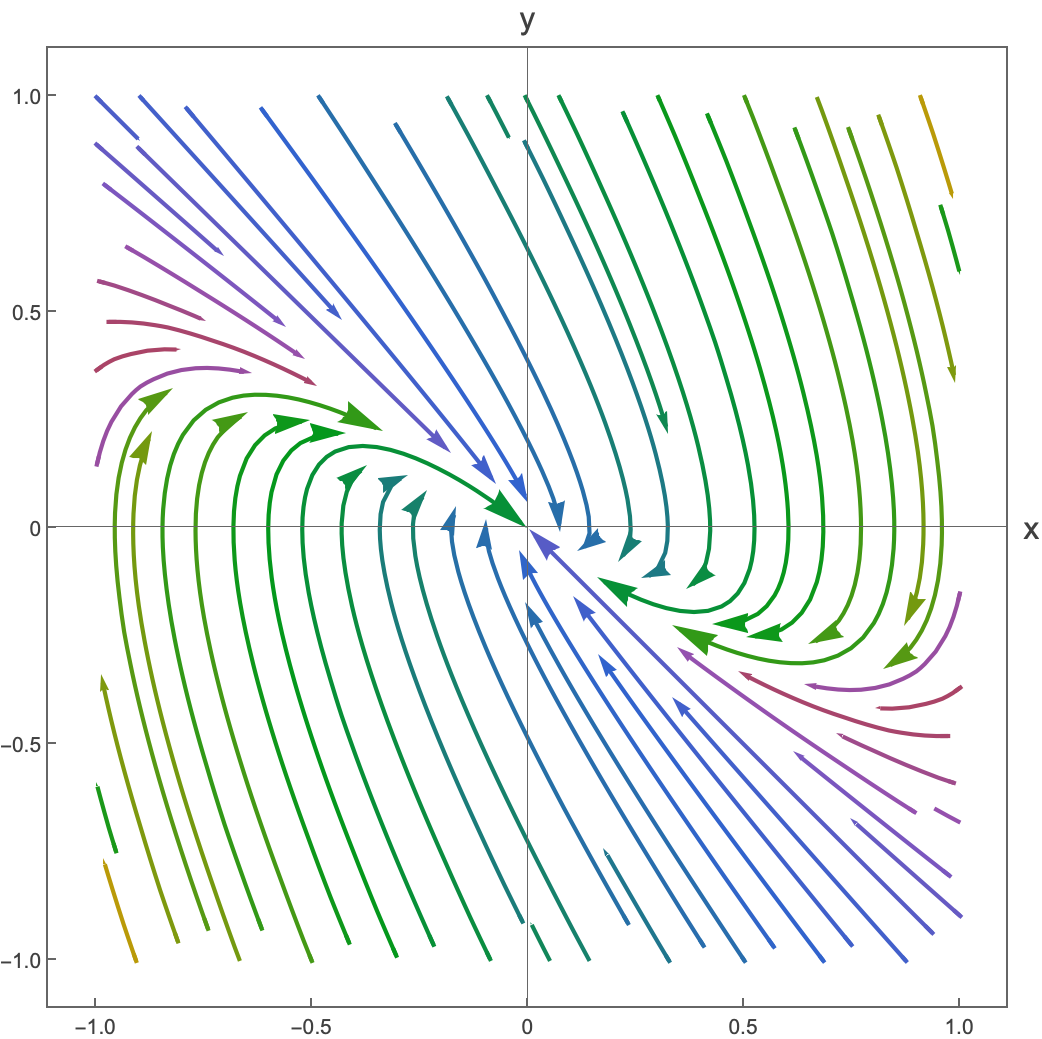

1h:

Figure 9
